Vertical Air Grinders...

Henrytool grinders meet the demanding requirements of industry, including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding .

Vertical Air Grinder

The Henrytools lineup of industrial vertical grinders are designed for continuous Super Heavy-Duty grinding applications. These Vertical grinders are great for cut-off and heavy stock removal of aluminium, steel and stainless steel. The Vertical air grinders on this page represent consistent quality performance in foundries, welding shops, fabrication facilities, steel mills and shipyards.

Advanced Airtool Design...

The following models are enhanced for use in an industrial environment:

Vertical Grinders

Industrial  Pneumatic Vertical Grinder Lineup

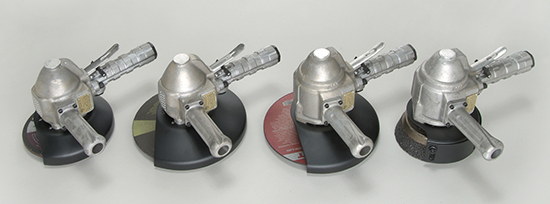

Vertical Grinder multi tool pic

56V Series (3 Horsepower) Vertical Grinders



Industrial Benefits:
  • Powerful 3 horsepower/high torque motor.
  • 4500 to 8000 rpm (6000RPM is standard)
  • The 56V Series is great for heavy-duty material removal and rough grinding applications.
  • Meets the demanding requirements of industry, including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding .
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Lightweight high-alloy aluminum housing, heat-treated for long service.
  • Two position "dead" handle adjusts to 90 degree or 120 degrees for increased operator control.
  • Common motor parts with other Henrytool models reduces spare parts inventory.
  • This tool is available with a 7" or 9" guard or a 6" cup wheel guard for use with stones..
  • (Grinding Wheel Recommendation): The Type 6 & 11 cup wheels remove large amounts of material and are good for open spaces.
  • (Grinding Wheel Recommendation): Use a Type 27 & 28 wheel for weld grinding, notch and gate removal, pipe beveling and repair in a metal fabrication environment.
  • The Henrytools 56V Series vertical grinders are designed for continuous Heavy-Duty grinding applications. Used for cut-off and heavy stock removal of aluminium, steel and stainless steel.
  • Henrytools vertical grinder model 56V maintains consistent quality performance in foundries, welding shops, fabrication facilities, steel mills and shipyards.
  • A Safety Lockout lever throttle is available. (See Specification chart below).



Model 56V Vertical Grinder (3 H.P.)
Henrytools Model 56VL Vertical Grinder with 6" Cup Wheel guard.
Model 56VL Vertical Grinder (3 horsepower motor) shown with a standard lever throttle and a (6" Type 11 Cup wheel guard) for use with stones. (Lockout safety lever throttle is available.)

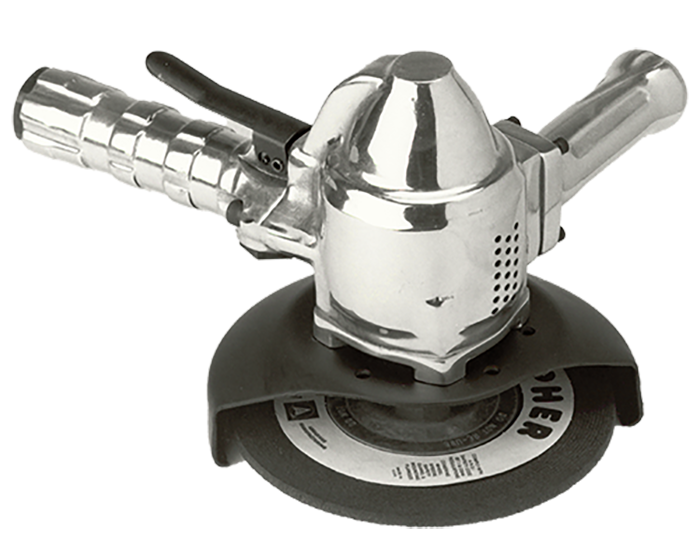

Model 56V Verical Grinder with 7" Wheel Guard
Henrytools Model 56VL Vertical Grinder with 7" wheel guard.
Model 56VL Vertical Grinder (3 horsepower motor)with a standard lever throttle and a 7" (Type 27 Wheel guard.) (A Safety Lockout Lever throttle is also available.)



Model 56VL Vertical Grinder (3 H.P.) with 9" Wheel Guard
Henrtyools Model 56VL Vertical Grinder shown with 9" Wheel guard. (3 Horsepower)
Model 56VK Vertical Grinder (3 horsepower motor) with a 9" (Type 27 Wheel guard.) (Pictured with Safety Lockout lever throttle ).  Tool runs 6000RPM standard.



56V Series (3 Horsepower) Vertical Grinder Specifications Table
Model Guard Size Throttle Type Rated Speed Spindle Type Rated Power
56VL_6" 6" Cup Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VL_7" 7" Wheel Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VL_9" 9" Wheel Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VS_6" 6" Cup Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VS_7" 7" Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VS_9" 9" Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
Standard Equipment includes:
  • Your choice of Guard 6", 7" or 9" Guard.
  • 1-2" Wheel Flange Wrench
  • 1- Spindle Nut, 1- Screen Bushing
  • 1- type 72 wheel retainer lock.
  • Extra Cost Equipment: Depressed center wheel adapter kit, sanding backing pads
≡

56V Series (3 Horsepower) Vertical Grinders Specifications

56V Series (3 Horsepower) Vertical Grinder Specifications Table
Model Guard Size Throttle Type Rated Speed Spindle Type Rated Power
56VL_6" 6" Cup Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VL_7" 7" Wheel Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VL_9" 9" Wheel Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VS_6" 6" Cup Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VS_7" 7" Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)
56VS_9" 9" Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 3.0 H.P.(2250 W)



56V Series (3 Horsepower) Vertical Grinder Additional Specifications Table
Weight Height to Bottom of Flange Spindle Type Rated Power Inlet Size Working Air Consumption
8.8 Lb.(3.9 Kg) 5 1/2" - 140 mm 5/8"-11 3.0 H.P.(2250 W) 1/2" N.P.T. 45 C.F.M or 21.2 L/S



  • * See Accessories Chart Below for Vertical Grinders.

Accessories for Vertical Grinders

Content for New div Tag Goes Here
Henrytools Vertical Grinder Accessories
Part Number Description Visual Description
849848 5" Pad, 5/8"-11 Thread Spiral cool pad Spiralcool Pad
849913 7" Pad, 5/8"-11 Thread Spiral cool pad Spiralcool Pad
849914 9" Pad, 5/8"-11 Thread Spiral cool pad Spiralcool Pad
849259 5/8-11 Spiral cool pad lock nut Spiralcool locking nut
849269 Depressed center wheel adaptor kit Depressed Center Wheel Adpator Kit
102-SPWR Wrench for 5/8"-11 Nut 5/8"-11 Nut Wrench For Spiralcool Pads
700-200 7" Guard (Type 27) 7" Vertical Grinder Guard (type 27)
700-201 9" Guard (Type 27) 9" Vertical Grinder Guard (Type 27)
412988 6" Cup Guard (For Type 11 Cup Wheels) 6" Cup Guard (For Type 11 Cup Wheels)



65V Series (4 Horsepower) Vertical Grinders



Industrial Benefits:
  • Super powerful industrial 4 horsepower Motor.
  • 4500 to 8000 rpm (6000RPM is standard)
  • This vertical grinder can be used in cut-off and heavy stock removal of aluminium, steel and stainless steel.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Lightweight high-alloy aluminum housing, heat-treated for long service.
  • The 65V Series grinders are designed for continuous Heavy-Duty grinding applications.
  • Henrytools vertical grinder model 65V maintains consistent quality performance in foundries, welding shops, fabrication facilities, steel mills and shipyards.
  • Two position "dead" handle adjusts to 90 degree or 120 degrees for increased operator control.
  • Common motor parts with other Henrytool models reduces spare parts inventory.
  • This tool is available with a 7" or 9" guard or a 6" cup wheel guard.
  • (Grinding Wheel Recommendation): Use a Type 27 & 28 wheel for weld grinding, notch and gate removal, pipe beveling and repair or in a metal fabrication environment.
  • (Grinding Wheel Recommendation): The Type 6 & 11 cup wheels remove large amounts of material and are good for open spaces.
65VL Vertical Grinder (4 H.P.) with 7" Wheel Guard
Henrytools Model 65VL Vertical grinder with 7" Wheel guard. (4 horsepower motor)
Model 65VL Vertical Grinder with a 7" Wheel guard. (Lockout safety trigger throttle is available.) Tool runs 6000RPM standard.



65VK Vertical Grinder (4 H.P.) with 9" Wheel Guard
Henrytools model 65VL Vertical Grinder with 9" Wheel guard. (4 horsepower motor)
Model 65VK Vertical Grinder (4 horsepower motor) pictured with a Safety Lockout lever throttle and a 9" (Type 27 ) Wheel guard. This tool runs 6000RPM standard.



65V Vertical Grinder (4 H.P.) With 6" Cup Wheel Guard
Henrytools Model 65VL Vertical Grinder shown with 6" Cup guard. (4 horsepower motor)
Model 65VL Vertical Grinder (4 horsepower motor) shown with a standard lever thottle and a 6" (Type 11 Cup wheel guard) for stones. (A Safety Lockout Lever throttle is also available.)



65V Series (4 Horsepower) Vertical Grinder Specifications Table
Model Guard Size Throttle Type Rated Speed Spindle Type Rated Power
65VL_6" 6" Cup Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VL_7" 7" Wheel Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VL_9" 9" Wheel Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VS_6" 6" Cup Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VS_7" 7" Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VS_9" 9" Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.



Standard Equipment includes:
  • Your choice of Guard 6", 7" or 9" Guard.
  • 1-2" Wheel Flange Wrench
  • 1- Spindle Nut, 1- Screen Bushing
  • 1- type 72 wheel retainer lock.
  • Extra Cost Equipment: Depressed center wheel adapter kit, sanding backing pads



≡

65V Series (4 Horsepower) Vertical Grinders Specifications

65V Series (4 Horsepower) Vertical Grinder Specifications Table
Model Guard Size Throttle Type Rated Speed Spindle Type Rated Power
65VL_6" 6" Cup Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VL_7" 7" Wheel Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VL_9" 9" Wheel Guard Standard Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VS_6" 6" Cup Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VS_7" 7" Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.
65VS_9" 9" Guard Safety Lockout Lever 4500 to 8000 rpm (6000RPM is standard) 5/8"-11 4 H.P.



65V Series (4 Horsepower) Vertical Grinder Additional Specifications Table
Weight Height to Bottom of Flange Rated Power Inlet Size Working Air Consumption
11.0 Lb.(5.0 Kg) 6 1/2"-164 mm 4 H.P. 1/2" N.P.T. 50 cfm
(23.6 L/s)





Vertical Grinder Accessories

Content for New div Tag Goes Here
Henrytools Vertical Grinder Accessories
Part Number Description Visual Description
849848 5" Pad, 5/8"-11 Thread Spiral cool pad Spiralcool Pad
849913 7" Pad, 5/8"-11 Thread Spiral cool pad Spiralcool Pad
849914 9" Pad, 5/8"-11 Thread Spiral cool pad Spiralcool Pad
849259 5/8-11 Spiral cool pad lock nut Spiralcool locking nut
849269 Depressed center wheel adaptor kit Depressed Center Wheel Adpator Kit
102-SPWR Wrench for 5/8"-11 Nut 5/8"-11 Nut Wrench For Spiralcool Pads
700-200 7" Guard (Type 27) 7" Vertical Grinder Guard (type 27)
700-201 9" Guard (Type 27) 9" Vertical Grinder Guard (Type 27)
412988 6" Cup Guard (For Type 11 Cup Wheels) 6" Cup Guard (For Type 11 Cup Wheels)
