Air Rammers Page...

Henrytools Horizontal Air Rammers are suitable in various applications for foundry purposes, as well as construction-related areas. Packing stone and packing sand, etc., and other industrial tasks.

Air Rammers

Explore all of the Henrytool rammers that an be used in various applications for foundry purposes and construction.

Advanced Airtool Design...

The following models are enhanced for use in an industrial environment:

Air Rammers

BENCH & FLOOR RAMMERS



Bench and Floor Rammers intoduction to page pic





1300-OB Air Sand Rammer



Industrial Benefits:
  • Made in America.
  • Model 1300-OB Rammer features a world standard industrial 2" stroke.
  • 2500 BPM (blows per minute)
  • A Super duty sand rammer that provides fast, powerful blows for ramming small, medium and large tasks on the bench or the floor.
  • Intended for ramming of casting sand in cylinders, core boxes, large molds and casting pits.
  • Applications: This rammer can be used for standard tamping work. Commonly used in tamping of filling sand. This rammer can also be used for common stamping of refractory furnace linings.
  • Ships standard with a 2 3/8" rubber butt.
  • Specify which size rubber butt you'd  prefer when ordering. (See Chart Below)



1300-OB Rammer
Henrytools 1300-OB Bench Air Rammer
Model 1300-OB Bench-Type Air rammer shown with a  standard 2- 3/8"rubber butt.



1300-OB Bench Rammer Specifications
Model Rammer Type Length & Diameter Bore Stroke Blows Per Minute
1300-OB Rammer 16-1/2" 1.7" 1" 2"
51 mm		 2500



≡

1300-OB Rammer Specifications

1300-OB Bench Rammer Specifications
Model Rammer Type Length & Diameter Bore Stroke Working Air Consumption
1300-OB Rammer 16-1/2" 1.7" 1" 2"
51 mm		 20 cfm
(9.4 L/S)



1300-OB Bench Rammer Additional Specifications
Weight Diameter Bore Stroke Blows per Minute Inlet Size
5 lbs. 1.7"
43 mm		 1" 2"
51 mm		 2500 3/8"



  • * See Rammer Butts and Peins Chart below.

Butts and Peins Chart

Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt
832925 3" Diameter Steel Butt
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt





1320 Series Bench Rammers



Industrial Benefits:
  • Made in America.
  • Features a 2.5" stroke for standard bench rammer power.
  • 1600 BPM (blows per minute)
  • Featuring a hard hitting larger size, light weight and long throttle lever.
  • Great for heavy tamping, ramming fire clay and ideal for furnace work.
  • Its unique "sand wiper" seal excludes dirt and grit from inside the tool for reduced wear and long life.
  • Available with different size butts.
  • Adjustable packing gland maintains maximum power with low maintenance.
  • Easy start & stop lever throttle.

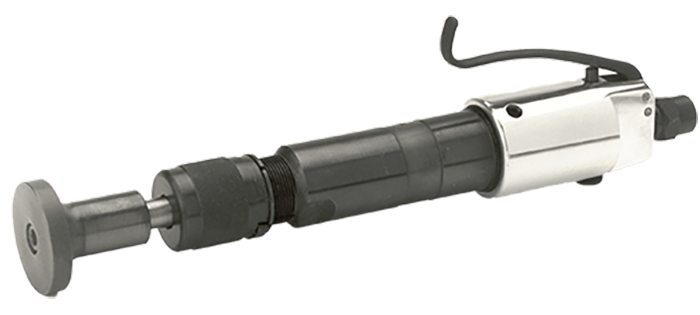

1320-2BA Bench Rammer with a 2.5" Stroke
Henrytools 1320-2BA Bench Air Rammer
Henrytools Model 1320-2BA Rammer. Hard-hitting industrial rammer shown with steel butt .



Model Rammer Type Length Diameter Stroke Blows per Minute
1320-2BA Lever type rammer 17.1 Inches(435 mm) 2.3 Inches(58 mm) 2.5" 1600



≡

1320-2BA Bench Rammer Specifications

Model Rammer Type Length Diameter Stroke Blows per Minute
1320-2BA Lever type rammer 17.1 Inches(435 mm) 2.3 Inches(58 mm) 2.5" 1600



Length Weight Bore Working Air Consumption Inlet Size
17.1 Inches(435 mm) 7.6 Lb.(3.4 Kg.) 1.0 Inch 20 cfm(9.4 L/S) 1/2"



* See Rammer Butts and Peins Chart below.

Butts and Peins

Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt
832925 3" Diameter Steel Butt
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt



1320-2BF Floor Rammer



Industrial Benefits:
  • Made in America.
  • The Henrytools 1320 Series Floor rammers are the world american standard.
  • An extended pipe & throttle turns the 1320-2BA into an awsome industrial Floor rammer.
  • Features a 2.5" stroke for standard rammer power.
  • Powerful yet rugged lightweight construction.
  • This unit is easily held from a standing position while compacting very large molds at floor level.
  • Optional front end butts.... Ideal for compacting sand in molds that cannot be accessed with a bench style rammer.
  • Available with different sized butts. (See Butts and Pein Chart below)



1320-2BF Floor Rammer with 2.5" Stroke
Henrytools 1320-2BF Floor air rammer
Henrytools Model 1320-2BF Floor Air Rammer shown with rubber butt.
1320-2BF Floor Rammer Specifications
Model Rammer Type Length Weight Stroke Blows per Minute
1320-2BF Floor type rammer 30.7 Inches
(779 mm) approx		 7.6 Lb.(3.4 Kg.) 2.5 inches 1600



≡

1320-2BF Floor Rammer Specifications

1320-2BF Floor Rammer Specifications
Model Rammer Type Length Weight Stroke Blows per Minute
1320-2BF Floor type rammer 30.7 Inches
(779 mm) approx		 7.6 Lb.(3.4 Kg.) 2.5 inches 1600



1320-2BF Floor Rammer Specifications
Diameter Weight Diameter Stroke Working Air Consumption
1.88 Inches(48 mm) 7.6 Lb.(3.4 Kg.) 2.3 Inches(58 mm) 2.5 inches 20 cfm(9.4 L/S)



* See Rammer Butts and Peins Chart below.

Butts and Peins



Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt
832925 3" Diameter Steel Butt
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt



1350 Series Bench Rammers



 Industrial Benefits:
  • Made in America.
  • The Henrytools Model 1350-2BA bench rammer is ideal for use as a heavy hitting compactor.
  • 1240 BPM (blows per minute)
  • Featuring a 4" Stroke.
  • This rammer is used when you need more compacting force featuring a 4" stroke.
  • Great for heavy tamping, ramming fire clay and ideal for furnace
    work.
  • Powerful yet rugged lightweight construction.
  • Also featuring a long throttle lever allowing this unit to be used on small modeled workpieces that are set up waist high.
  • Its unique "sand wiper" seal excludes dirt and grit from inside the tool for reduced wear and longer tool life.

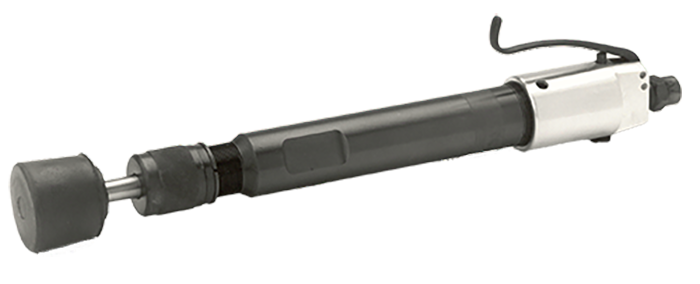

1350-2BA Bench Rammer with 4" Stroke
Henrytools model 1350-2BA Bench Air Rammer
Model 1350-2BA Bench rammer features a very hard hitting 4" stroke.
1350-2BA Bench Rammer Specifications
Model Rammer Type Length Bore Stroke Blows per Minute
1350-2A Bench rammer 22.2 Inches
(564 mm)		 1" 4" 1240



≡

1350 Series Bench Rammers

1350-2BA Bench Rammer Specifications
Model Rammer Type Length Bore Stroke Blows per Minute
1350-2A Bench rammer 22.2 Inches
(564 mm)		 1" 4" 1240



1350-2BA Bench Rammer Additional Specifications
Weight Diameter Working Air Consumption
10.7 Lb.
(4.8 Kg.)		 2.3 Inches(58 mm) 20 cfm(9.4 L/S)



  • * See Rammer Butts and Peins Chart below.

Butts and Peins

Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt
832925 3" Diameter Steel Butt
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt



1350 Series Floor Rammers



Industrial Benefits:
  • Made in America.
  • 1240 BPM (blows per minute)
  • Featuring a 4" Stroke.
  • Model 1350-2BF Floor Rammer ideal for use when you need more compacting force featuring a hard hitting 4" stroke.
  • 1350 Series rammer is a very hard hitting industrial floor rammer.
  • Powerful yet rugged lightweight construction.
  • This unit is easily held from a standing position while compacting very large molds at floor level.
  • Optional front end butts... Ideal for compacting sand in molds that cannot be accessed with a traditional bench style rammer.

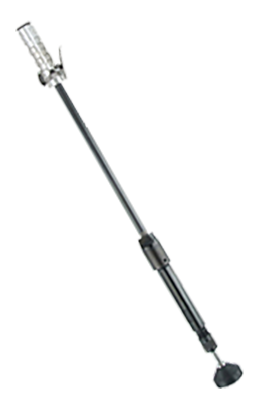

1350-2BF Floor Rammer with a 4" Stroke
Henrytools model 1350-2BF Floor air rammer
Model 1350-2BF Floor rammer features a very hard hitting 4" stroke. (Pictured with 3" rubber butt.)



1350-2BF Floor Rammer Specifications Chart
Model Rammer Type Diameter Weight Stroke Blows per Minute
1350-2BF Rammer 2.3 Inches(58 mm) 14.3 Lb.(6.5 Kg.) 4" 1240



≡

1350 Series Floor Rammers

1350-2BF Floor Rammer Specifications Chart
Model Rammer Type Diameter Weight Stroke Blows per Minute
1350-2BF Rammer 2.3 Inches(58 mm) 14.3 Lb.(6.5 Kg.) 4" 1240



1350-2BF Floor Rammer Specifications Chart
Length Diameter Working Air Consumption
61 Inches(1549 mm) 2.3 Inches(58 mm) 20 cfm(9.4 L/S)



  • * See Rammer Butts and Peins Chart below.

Butts and Peins Chart

Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt
832925 3" Diameter Steel Butt
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt
